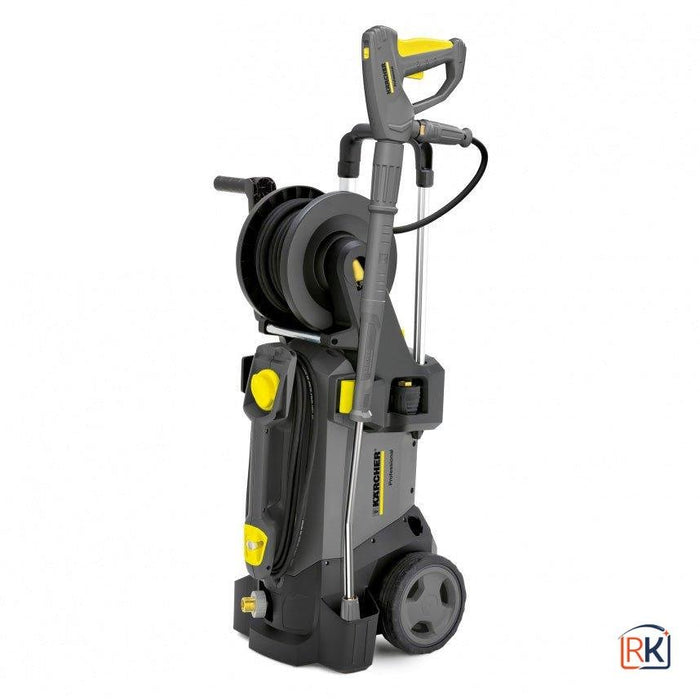

The Karcher HD 5/12 CX Plus is a compact, high performance pressure washer with unique stand-up or lay-flat operating positon, large carry handle and built-in hose reel.
FEATURES AND BENEFITS
Features and benefits
Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.
At last – work without getting tired: the EASY!Force high-pressure gun. EASY!Lock quick-release locks: durable and robust. And five times faster than screws.
Mobility
The integrated carrying handle on the front of the machine enableseasy loading and convenient transport. Push handle can be retracted at the push of a button. Compact package.
Flexibility
Vertical and horizontal operation possible. The wheels are not on in horizontal operation. In this way,the machine offers maximum stability. Separate parking and transport position for the spray unit.
| Quality |
|
| Accessory storage |
|
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 500 |
| Operating pressure (bar/MPa) | 120 / 12 |
| Max. pressure (bar/MPa) | 175 / 17.5 |
| Power rating (kW) | 2.5 |
| Power cable (m) | 5 |
| Weight (kg) | 22 |
| Dimensions (L x W x H) (mm) | 380 x 370 x 930 |
Equipment
- Trigger gun, EASY!Force
- High-pressure hose, 15 m
- Spray lance, 840 mm
- Triple nozzle (0°/25°/40°), Manual
- Dirt Blaster spray lance
- Hose reel
- Pressure switch control
