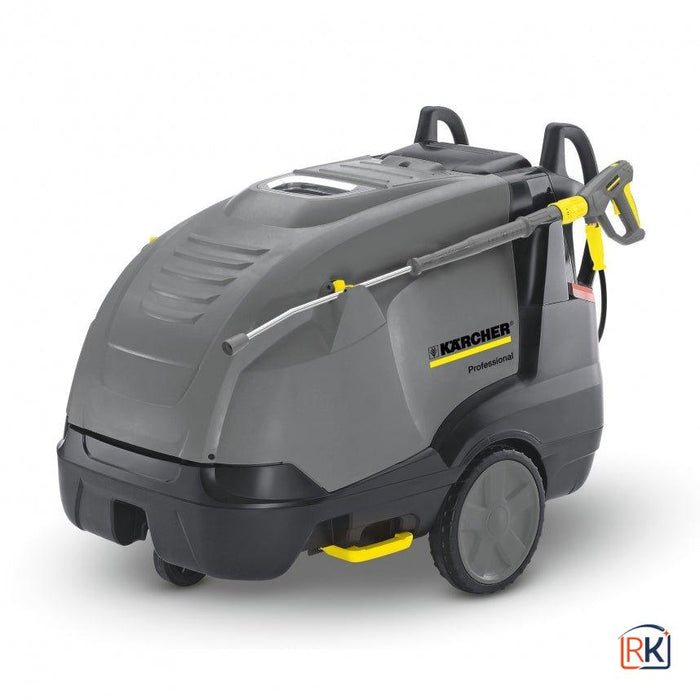

The Karhcer HDS 7/10-4 MX is a medium class hot water high-pressure cleaner with a host of user-friendly features including integrated hose reel.
Kärcher’s HDS middle class hot water high-pressure cleaners reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The Karcher HDS 7/10-4 MX features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs. The MX model also featurs a 15m high pressure hose with integral hose reel, adding extra convenience and a wider cleaning radius.
FEATURES AND BENEFITS
EfficiencyIn the Eco setting the unit operates in the most economical temperature range (60°C) with full water flow. Burner cycles are optimised to reduce fuel consumption by up to 20% compared to full-load operation.
Maximum efficiencyHighly efficient burner technology. 4-pole, slow-running electric motor guarantees a long working time.
Operational reliabilityThe large, integrated fine-mesh water filter reliably protects the high-pressure pump against dirt particles. An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C. The soft damping system (SDS) compensates for vibrations and pressure surges in the high-pressure system.
|Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.||
|Current type (Ph/V/Hz)||1 / 240 / 50|
|Flow Rate (l/h)||350 - 700|
|Operating pressure (bar/MPa)||
30 - 100 / 3 - 10
|Temperature (supply 12°C) (°C)||80 - 155|
|Power rating (kW)||3.4|
|Consumption fuel oil (kg/h)||4.6|
|Heating oil consumption, eco!efficiency (kg/h)||3.7|
|Power cable (m)||5|
|Fuel tank (l)||25|
|number of simultaneous users||1|
|Weight (with accessories) (kg)||165|
|Weight incl. packaging (kg)||177|
|Dimensions (L x W x H) (mm)||1330 x 750 x 1060|
- Trigger gun, EASY!Force Advanced
- High-pressure hose, 20 m, Longlife
- Spray lance, 1050 mm
- Power nozzle
- Integral high-pressure hose reel
- Tanks for detergent, scale inhibitor and fuel can be filled from outside
- Control panel with indicator lamps
- Pressure switch control
- Electronic service control with LED display
- Two detergent tanks
- Dry running protection
